LyoHUB

Functionality & Mechanism

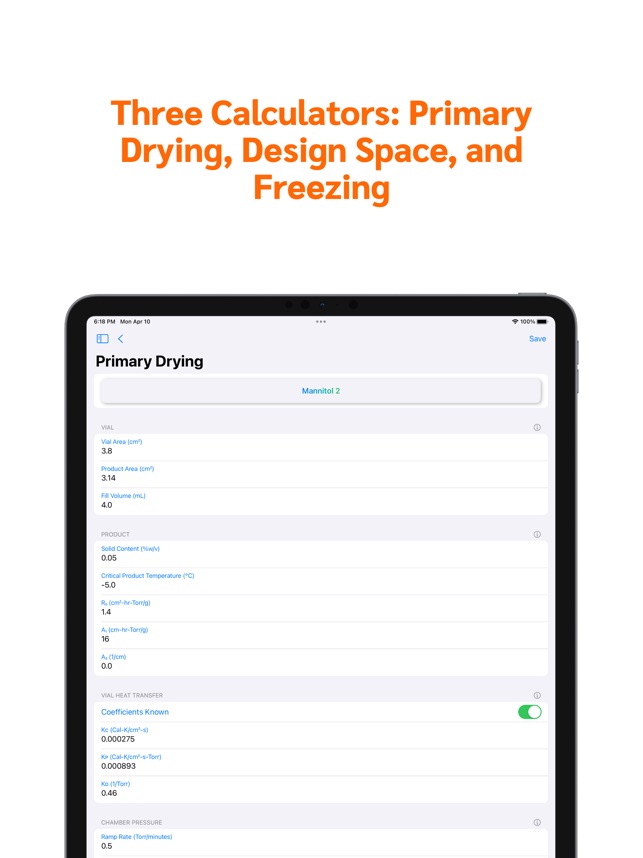

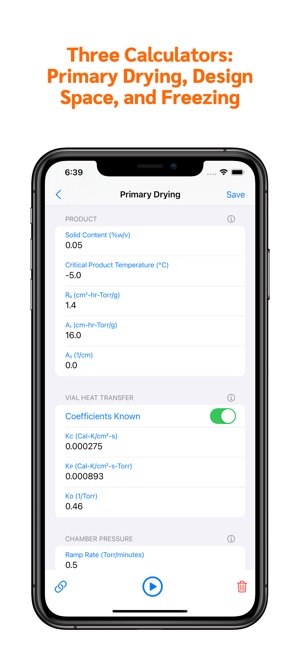

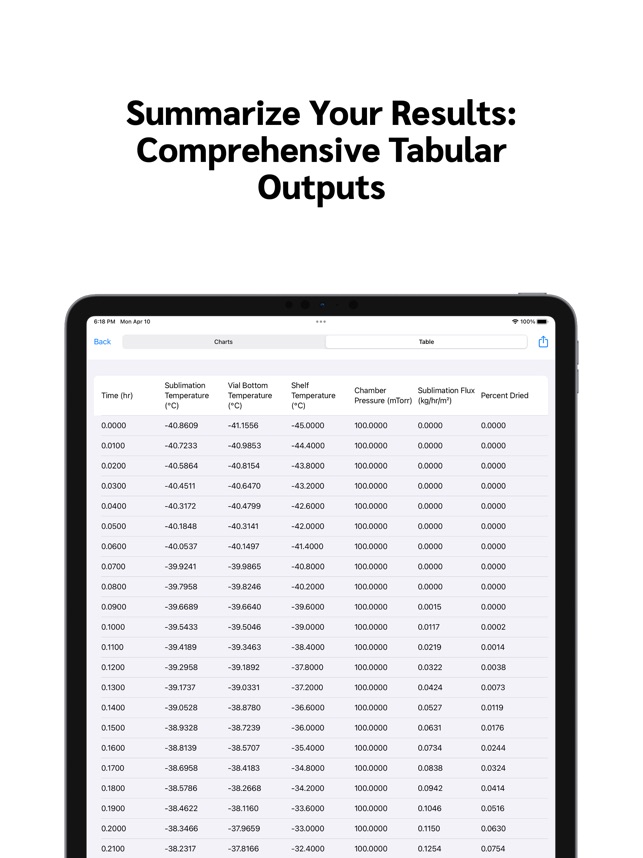

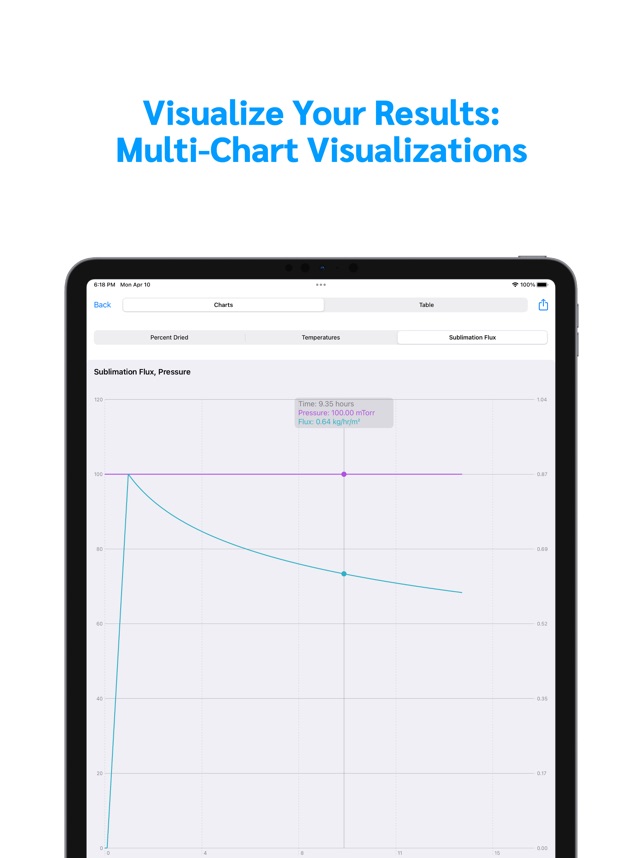

Developed by LyoHUB, this application serves as an informational portal and integrates a powerful lyophilization simulation tool, LyoPRONTO. The tool's modules execute simulations of freezing and primary drying stages using 0D lumped capacitance and 1D heat and mass transfer models. The interface facilitates the generation of a process design space based on user-defined inputs. From this space, the system computes and displays optimal, time-varying setpoints for chamber pressure and shelf temperature to minimize drying time.

Evidence & Research Context

The tool's design and performance are detailed in an associated research article that presents preliminary validation data.

• The primary drying calculator demonstrated a predictive accuracy with an average deviation of 3% from experimental measurements.
• For a 5% mannitol solution, the optimization algorithm reduced primary drying time by 62% compared to typical cycle conditions.
• For a 5% sucrose solution, the optimizer achieved a 50% reduction in primary drying time.
• The authors propose the underlying optimization models could inform the development of advanced, automated freeze-drying control systems.

Intended Use & Scope

Intended for researchers, formulation scientists, and process engineers involved in lyophilization development. The application functions as a modeling and process optimization tool for designing freeze-drying cycles prior to physical experimentation. The tool is not a real-time process control system, and all model-derived parameters require empirical validation in a specific laboratory or manufacturing setting.
